This advanced Energy Storage system contains battery, inverter charger and communication centre. You can be free as long as you have energy in battery.
After that you either:
- start your generator to top up battery (generator is loaded properly to gain best efficiency from combustion engine / alternator setup)
- connect your solar panels
- connect your wind turbine
- connect your water turbine
- pedal bicycle with generator to charge batteries
- other source of energy
- last one (the only one bad) – charge your batteries from the grid and escape again 🙂
Every generator is different but Victron makes it possible to reduce charging power if your generator can not deliver amount of energy required by inverter charger. So you can use small generator for more hours or bigger for less to charge up your battery.
This easy & ready to assemble energy storage will be an emergency backup system capable to run your 220-230 V rated devices.
PowerOn.1.2
Lithium Battery
SYSTEM Highlights
4-5 Hours of Backup
Battery backup of minimum 4 hours at constant 800 Watts load and 90% battery discharge. Or if you just run your TV and router, you can watch two seasons of your favorite show on Netflix till battery drop to 10%.
1200 VA Power
System can support total load of up to 1000W (2400W in peak). That's enough to support devices like TV, fridge, laptop & mobile chargers, router, LED lights in a 2-3 bedroom flat or house.
3.5 kWh Lithium Battery
Maintenance free, state-of-the-art Li-Ion battery suitable for application scene of high power, limited installation space, restricted load-bearing and long cycle life (up to 6000 cycles).
Advanced Battery Charging
Sophisticated battery charger that features adaptive charge technology (from grid or generator) and a high-speed AC transfer switch in a single enclosure.
Real Time Monitoring
Included Venus GX ensure that all components are working in harmony and allows you for monitoring of live data or changing settings via Victron Remote Management Portal (VRM).
WiFi/LAN Enabled
The built-in WiFi Access Point or Ethernet cable port let you either connect your smartphone (or other device), as well give you an option to connect the system to the Internet.
Works as UPS
In the event of a grid failure the inverter is automatically activated and takes over supply to the connected loads (in less than 20 milliseconds, so it's safe for computers).
Warranty
System elements comes with 5-years limited warranty with the exception of battery which is 7-years limited warranty (10 years after registration).
Order this kit & save 20% (€538,80 ex. VAT) while comparing to buy elements seperately!
PowerOn.1.2
Lithium Battery

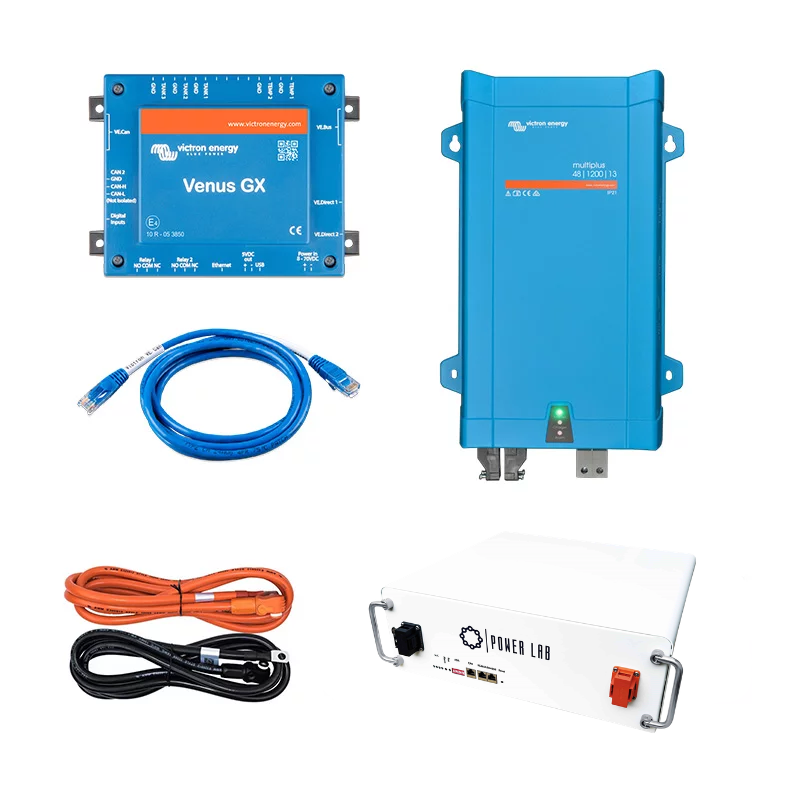

SYSTEM ELEMENTS
Pylontech US3000 3.5 kWh Li-Ion Solar Battery (LV)
Victron Energy MultiPlus 48/1200/13-16 230V VE.Bus Inverter
Victron Energy Venus GX Panels and system monitoring
Victron Energy VE.Can to CAN-bus BMS Type B Communication Cable 1.8 m
The kit consists of:
- 1 pc x Victron Energy Venus GX Panels and system monitoring
- 1 pc x Victron Energy MultiPlus 48/1200/13-16 230V VE.Bus Inverter
- 1 pc x Pylontech US3000 3.5 kWh Li-Ion Solar Battery (LV)
- 1 pc x 25sq DC Cables for Battery Pylontech US2000B/UP2500/US3000
- 1 pc x Victron Energy VE.Can to CAN-bus BMS Type B Communication Cable 1.8
Running load
Up to 1000 watts of power with a combination of:
laptop & mobile chargers, powerbanks, light bulbs and lanterns, fridge, sandwich toaster, kitchen grinder, mixer, juice maker, drill machine, screwdriver or other power tools, LED TVs and multimedia projectors, CCTV/security systems.
Battery backup time at 90% discharge*
| Load | 1000 W | 800 W | 500 W | 200 W | 100 W |
|---|---|---|---|---|---|
| Duration | 3 hr 12 min. | 4 hr 0 min. | 6 hr 24 min. | 16 hr 0 min. | 32 hr 0 min. |
*Values estimated at 90% depth of discharge (DoD) which is recommended for Lithium batteries giving them lifespan of 6000 cycles (check battery page for more details).
Recommended area of use for PowerOn.1.2 Lithium
- 2-3 Bedroom Home
- Small and medium summer houses
- Locations with frequent power cuts
- Small sized boats and yachts
- Recreational vehicles (RV)
Specifications
| Kit variant: | PowerOn.1.2 Lithium |
| System DC voltage: | 48 V |
| Battery size & type: | 1 x 74 Ah Li-Ion 48 V (3552 Wh) |
| Nominal power: | 1000 W (1200 VA) |
| Peak load: | 2400 W |
| Inverter efficiency: | 94% |
| AC output: | 230 VAC +/- 2% @50Hz +/- 0,1% |
| AC connection: | G-ST18i connector |
| Inverter dimensions & weight: | 406 x 250 x 100 mm 8.2 kg |
| Venus GX dimensions & weight: | 45 x 143 x 96 mm 0.4 kg |
| Battery dimensions & weight: | 442 x 420 x 13 mm 32 kg |
| Total weight of system: | 40.6 kg |
